AGVs and Humans – Something in Common?

AGVs (Automated or Automatic Guided Vehicles) and humans have something in common – autonomy. Each is required to sense things in their environment and then modify their behavior based on the surrounding inputs received.

For humans, data processing is accomplished via the brain through our senses. AGVs typically follow markers or wires in the floor, or use vision, magnets, or lasers for navigation.

Automated Guided Vehicles can be used in a wide variety of applications to transport many different types of material, including pallets, rolls, racks, carts, and containers. Alba created an AGV Dual Pick-Up Station. Its purpose: to convey and stage two (2) individual slip sheet loads. The unit is designed to convey two (2) loads at a time onto a two-position AGV unit. The rate required is 30 loads per hour.

  Alba Manufacturing Newsletter

Utilizing our pre-engineered products, our Frame-to-Frame Transfer (AGV Dual Pick-Up Station) was an ideal application to use in tandem with the end user’s AGV system. The application possessed the following characteristics:

Repetitive movement of materials over a distance;
Regular delivery of stable loads;
Medium throughput/volume;
On-time delivery is critical and late deliveries cause inefficiency;
Processes where tracking material is important; and
Increasing team member safety by reducing the amount of fork-truck traffic.

Product Information

40” x 48” Stretch-Wrapped Slip Sheets, 700-Lbs. Max Weight

Conveyor Design: Model FFT251140-3.75-4S (Frame-to-Frame Transfer)

Alba Manufacturing Newsletter

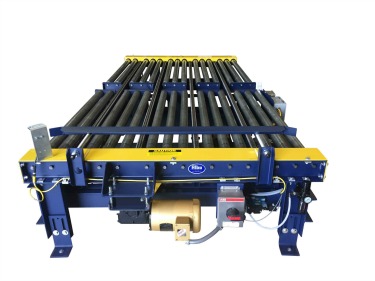

Chain Driven Live Roller Conveyor Specifications:
Length: 5’ 1-1/2" Long
Width: 52" Conveying Surface
Rollers: 2-1/2" Diameter x 11 Gauge Rollers with Galvanized Tubing
Roller Centers: 3-3/4"
Motor: 1/2 HP Baldor Super "E" Motor
Elevation: 22" Top of Roller
Speed: 45 FPM (Feet Per Minute)

Valued Added Items:
Allen Bradley photo eyes, Banner emitters and receivers. All devices wired to a pre-mounted junction box. ABB motor disconnect wired with Brad Harrison mini-change cordset.
Chain Transfer Specifications:
Length: 6' 0" Centerline of CDLR Conveyors
Chain: Four (4) Strands of RC-50 Chain
Centers: 13-1/2" Chain Centers
Motor: 1 HP Super "E" Motor
Speed: 45 FPM
Lift: Positive Lift via Pneumatic Cylinder

Valued Added Items:
Mac double solenoid valve, Allen Bradley proximity switches. Devices wired to a pre-mounted junction box. ABB motor disconnect wired with Brad Harrison mini-change cordset.

At Alba, our corporate culture is infused with an unrelenting dedication to our Partner Network Members and their end users. Alba will realize a 35% increase in manufacturing capacity, storage space, stock and components – all of which will translate to better products and faster deliveries once our new 21,000 square foot expansion is complete.

By advancing, investing, and dedicating ourselves to the future, we have taken affirmative action to secure your future growth and development. Thank you for your business. We appreciate our relationship.
