Scrabble Anyone? |
 |
|
CDLR – CHEP – GMA – APNs – common acronyms at Alba Manufacturing because they relate to our unique, pre-engineered, pallet handling solutions. Recently, an end-user contacted a member of the Alba Partner Network (APN) presenting a unique challenge.
The end-user was a high-volume consumer products company seeking to satisfy the evolving demands of various retail clients. The goal was to install a flexible robotic palletizing cell capable of handling traditional 40” wide x 48” long CHEP "Stringer" Pallets (Commonwealth Handling Equipment Pool) / GMA Pallets (Grocery Manufacturers Association) weighing up to 3,300 lbs. and 40” wide x 24” long CHEP "Half Pallets" weighting up to 1,650 lbs.
Through careful review and discussion, Alba provided a solution utilizing pre-engineered products including CDLR (Chain Driven Live Roller) Model 251140-4 and TFT (Through-Frame-Transfer) Model 251140-4-3S.
A key element of this successful project was the strategy to end-load the half pallets while side-loading the traditional pallets in order to always maintain bottom board orientation perpendicular to the conveyor rollers and transfer chains. |
|
 |

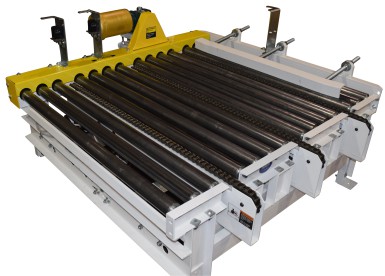

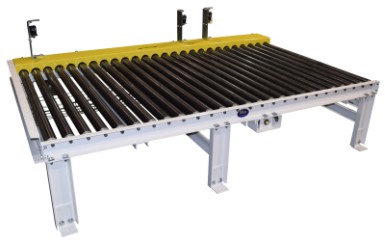

Alba provided and mounted photo-eyes positioned to accommodate the various pallets. Multiple photo eyes mounted to the CDLR provided the flexibility to convey and position different sized pallets while creating an indexing capability so that two pallets could be positioned to be removed by a fork truck simultaneously. Alba also supplied an ultrasonic sensor to detect the presence of the fork truck for safe operation of the conveyor. To simplify installation, the CDLR conveyor provided two driven zones sharing a common structural channel frame.
This project included several value-added features: pre-mounted photo eyes and ultrasonic sensor wired to a common junction box, an adjustable end stop, special paint color and most importantly, the cooperative, problem-solving efforts that are typical within the APN (Alba Partner Network).
Alba depends upon our select network of distributors and integrators – the Alba Partner Network – to actively present and promote Alba products as best in class for pallet handling solutions. Call us to locate your nearest Alba Partner Network Member to assist with your next project at 866.252.2634 or visit our website at www.albamfg.com.
Video Content Marketing, is it a Part of Your Strategy? |
|
 |
|
At Alba, we have some of the industries’ best and most talented partners. We want to help your company grow by driving more business and help contribute positively to your bottom line.
We are looking for application information, photos, and/or videos utilizing Alba conveyor. We’d like to share your success stories via our website and social media channels. Let us help you tout your success stories and the strengths of your company.
For the stories/information we utilize, we will create a corresponding marketing piece or two branded under your company’s name as well as write a feature story in our monthly Albagram Newsletter – to utilize – free of charge.
If you don’t know what to do with video or how to enhance the users’ experience, we can help you with that too. Call us. We promise. You will get a boat load of benefits!
|
Better Quality, Affordable and Faster Delivery. Call Alba! |
| Why? We can provide a variety of Standard Pre-Engineered CDLR Products – normal 5 ft. or 10 ft. sections – Ship in SEVEN DAYS from Time of Order whether it is just one piece or several pieces! Click for more information about our Value Conveyor Program! |
For CDLR Remember to CALL ALBA at 866.252.2634. |
|
|
 |
