Wrap It Up!

An uncomplicated, unsophisticated, common object, found in almost every manufacturing facility around the globe – the pallet. Some 80 percent of all U.S. commerce is carried on pallets. So widespread is their use that they account for more than 46 percent of total U.S. hardwood lumber production. Needless to say, pallets are a critical part of the supply chain. They serve as a base for assembling, handling, sorting, storing, and transporting goods as a unit load.

With costs and competition rising, manufacturers are continually challenged to increase throughput while reducing production costs. In other words, forced to do more with less which is a key driver to automating manufacturing processes. Alba understands the need to create optimal process flows while eliminating waste – in delays, defects, over production and unnecessary motion.

With years of experience, efficient, integrated, rock-solid pallet handling and automated stretch wrapping applications are second nature to Alba.


Alba Manufacturing Newsletter

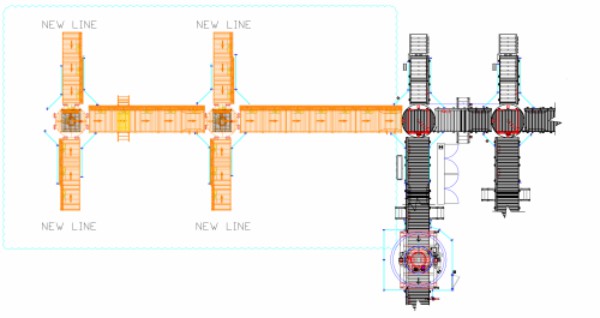

Recently, Alba received a request from a system integrator, an Alba Partner Network Member, to supply pallet conveyor to a major food supplier with locations throughout the US and more than 100 countries. The pallet conveyor system included 135 feet of CDLR Conveyor and two (2) Turntables with motorized bases. The new conveyor feeds an existing stretch wrap system. The product being transported: 2,700 lbs. (maximum) CHEP pallets.

Alba Manufacturing Newsletter

The following is a list of standard conveyor and value-added items in this application.

Conveyor Specifications:

Value-Added Features:

Standard Model #251150-5 Chain Driven Live Roller Conveyor and
Standard Model #TT251150-5 Chain Drive Live Roller Conveyor
Turntable Top with Electric Rotation Base
Two (2) Conveyor Crossovers including Stairs and Treadplate between Rollers, Adjustable Guide Rail, Flex Tray Wire Basket mounted to the side of Conveyor
Length: 150' of CDLR and Turntables
Rollers: 2-1/2" x 11-Gauge Wall, 11/16" Hex Axle on 5" Centers
Width: 44" Effective Width and 52" Effective Width
Speed: 45 FPM @ 60Hz
Motor: Baldor Super "E" 1 HP
Elevation: 16-1/4" Top of Roller
Paint: Steel-It Color Match

The next time you need to create a better process flow and eliminate downtime, call Alba Manufacturing. We know how to improve your efficiency without sacrificing quality and without blowing your budget. Call us today to assist with your next project at 866.252.2634 or visit our website at www.albamfg.com
