In Limbo?

The Limbo Rock, Chubby Checker and Alba Manufacturing – what do they have in common?
Like the Limbo, it’s all about "How low can you go?"

One of our largest systems integrators came to us with a challenge. What’s the best way to rotate a 10,000 lbs. load, 90 degrees in 8 seconds, on an assembly line, with easy access?

The end user assembles 17 ft x 6 ft x 7 ft roof top units for restaurants and businesses. The main production line consists of CDLR (Chain Driven Live Roller) Conveyors. Another important requirement – engineering a solution to enable assemblers to walk between the two conveyors to work on the top, front and back sides of the unit.

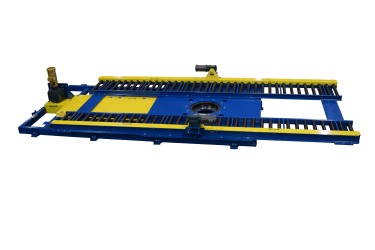

Our solution? A low profile heavy-duty turntable with a 16 inch top of roller elevation.

Conveyor Specifications:
•	Model 29760-6
•	19” Effective Width and 24” Effective Width
•	Rollers – 2 9/16” Roller Diameter, 7 Gauge with 11/16” Hex Shafts
•	1 HP Baldor Motors
•	Dodge Tigear II Shaft Mounted Gear Boxes (side mounted drives required for clearance)
•	30 FPM
•	#60 Chain
•	6” Roller Centers

Turntable Specifications:
•	Over 21 ft Long Unit
•	18 ft Long Chain Driven Live Roller Conveyors (same specifications as above)
•	2 HP Inverter Duty Brake Motor for Turntable Rotation
•	Massive RC 120 Drive Chain
•	2 ft Diameter Slew Bearing with Additional Cam Followers for Support
•	3/4” Thick Main Rotation Plate
•	Two (2) Floor Mounted Structures with Cam Followers to Support CDLR Conveyors when Rotating 90 Degrees

Step back in time and groove to Chubby Checker’s Limbo Rock or better yet, watch the Limbo World Record at 5-7/8 inches!

We hope you enjoyed this month’s AlbaGram.

If you have low profile requirements or other heavy-duty roller conveyor needs, don’t hesitate to contact us at 866.252.2634 or visit our website at www.ALBAmfg.com.

Don’t forget to follow our company on Twitter or LinkedIn and Like Us on Facebook. Click here to see our most current video.

Last Month's Issue

Frozen!

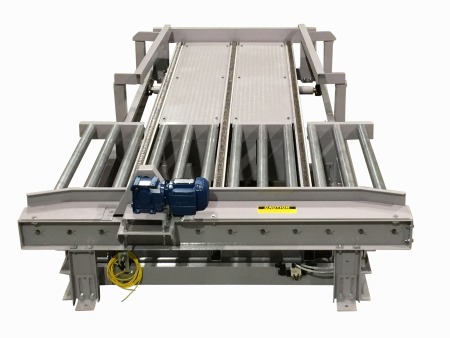

Frozen! A systems integrator/partner network member contacted Alba with a unique application. The requirement – create a pallet transfer and drag chain conveyor system operating in a minus 10°F environment to use in conjunction with a robot palletizing cell. The conveyed product: a four-way, 40" x 48" GMA (Grocery Manufacturer Association) Pallet with a 2,200 lbs. maximum weight per pallet.

The system consisted of eight chain driven live roller (CDLR) conveyors with through-frame type (TFT) transfers.
