Faster than a speeding bullet! More powerful than a locomotive! Able to leap tall buildings in a single bound!
Okay, maybe we aren’t Superman but with our pre-engineered frame-to-frame chain transfers you can be a hero in your customers’ eyes. Frame-to-Frame transfers are offered in a variety of standard sizes. Since the transfers are pre-engineered minus the bells and whistles, we have the ability to create quality, affordable products with a shorter lead time than most within the industry.
With a pre-engineered structural design, the design processes and manufacturing are quick and efficient. Here’s a sample of a standard, pre-engineered Frame-to-Frame Transfer built in 4-5 weeks from time of order to shipping. With other manufacturers in the industry, the typical lead time is 6-7 weeks and may cost as much as 15% more.

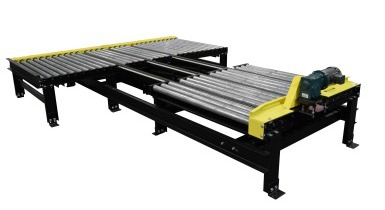

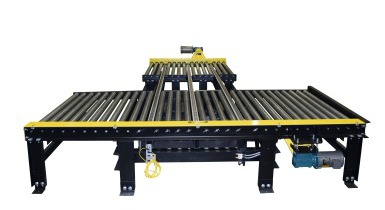

Standard Pre-Engineered Frame-to-Frame Chain Transfer
Model FFT251140-3.75-3S
Product Information |
• |
40” x 48”, 48” long bottom boards with bottom boards perpendicular to chain and rollers |
• |
4,000 lbs. maximum pallet weight |
Chain Driven Live Roller Specifications |
• |
One (1) 4’- 11 ¼” long and one (1) 9'- 11 ¼” long |
• |
52” effective width |
• |
2 ½” diameter rollers, 11 gauge, 11/16” hex shaft, spring retained, with galvanized tubes |
• |
Roller centers are 3.75” |
• |
The motor is mounted high side on the 4’- 11 ¼” section and low side on the 9- 11 ¼” section |
• |
The 9’- 11 ¼ section was located in a wrap zone so the motor was mounted low side to not interfere with the stretch wrapper |
• |
Motors are ¾ HP (horse power) |
• |
Conveyor speed is 30 FPM (feet per minute), Fixed Elevation is 24” TOR (top of roller) |
Blade Stops |
• |
Pneumatic blade stop included with double solenoid valve pre-piped to the cylinder, and one (1) proximity sensor pre-mounted with 2 meter cable |
• |
Pallet back stop included pre-mounted to the conveyor frame |
Transfer Specifications |
• |
8’ centerline of chain driven live roller conveyors |
• |
Chains on 17 ¼” centers |
• |
Three (3) strands of RC-80 chain included |
• |
Motor is 1 ½ HP, center drive which is standard on Alba transfers |
• |
4-point positive lift via pneumatic cylinder |
• |
Two (2) proximity switches included. Pre-mounted with 2 meter cables |
• |
Double solenoid valve pre-mounted and piped to the pneumatic cylinder |
Note to self before placing your order: |
|
There are actually two (2) individual CDLR frames sitting side-by-side...each with their own motor/reducer (drive). These two (2) individual frames are tied together with common "pop-up" two (2) or three (3) strand chain rails to transfer the product. When you are doing a motor count, there would be a total of (3) drives on this type of transfer. One for each of the individual Chain Driven Live Roller (CDLR) sections and one for the pop-up transfer chains. |
|
|
While we can’t change your physique to look like Superman or give you the ability to fly, at Alba we can make you a hero! Alba Manufacturing is your full-service, turnkey systems provider for your conveyor application needs. Call us to locate your nearest Alba Partner Network Member to assist with your next project at 866.252.2634 or visit our website at www.albamfg.com.
Choose SIMPLE. Choose STANDARD. Choose ALBA.
November's Issue |
|
According to Webster’s dictionary, STANDARD means a level of quality or the norm. SIMPLE means being easily done, presenting no difficulty and being composed of a single element. These two words quickly define our catalog products at Alba Manufacturing in regard to CDLR (Chain Driven Live Roller), Turntables, Drag Chain and Transfer Conveyor. Often times, we hear a myth from the marketplace: "Alba only does custom, heavy-duty, foundry-type applications." NOT TRUE!
Our Standard CDLR, Turntables, Drag Chain, and Transfer Conveyors are designed around these two principles: STANDARD and SIMPLE.
So why purchase our Catalog items?
|
|
|
