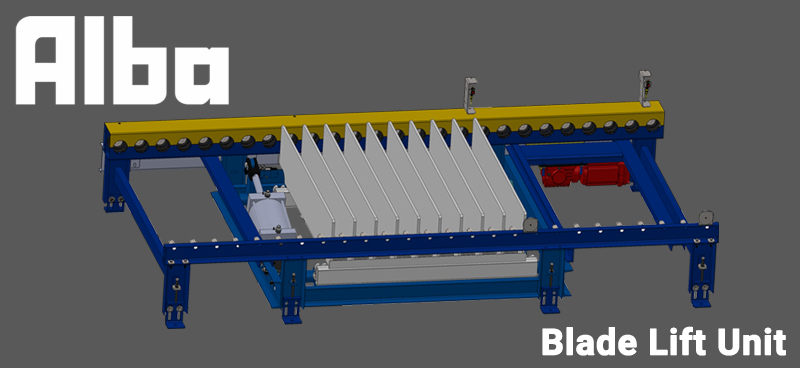

At Alba Manufacturing, we engineer more than conveyors—we deliver value-added solutions that solve real-world challenges in pallet handling. One such solution is our Blade Lift Unit, designed for applications where a full pallet must be raised above the conveying surface. This is especially important during stretch wrapping operations where wrapping low on the pallet creates a more stable, unitized load. Blade lifts are also ideal for load stacking and banding scenarios.
To fully appreciate the strength and engineering of Alba’s Blade Lift, let’s take a closer look behind the rollers.
Blade Weldment |
|

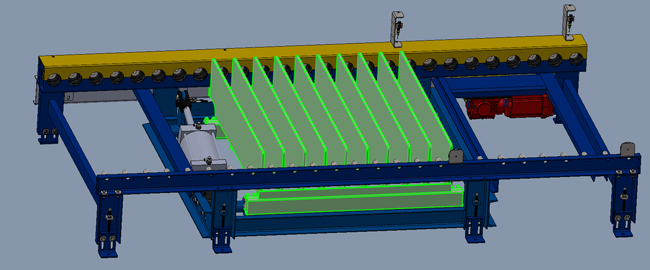

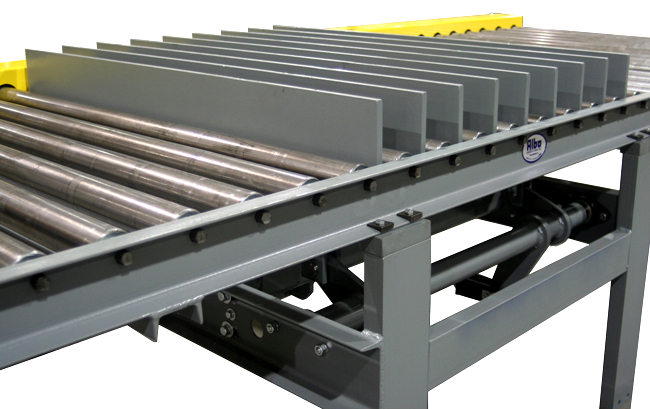

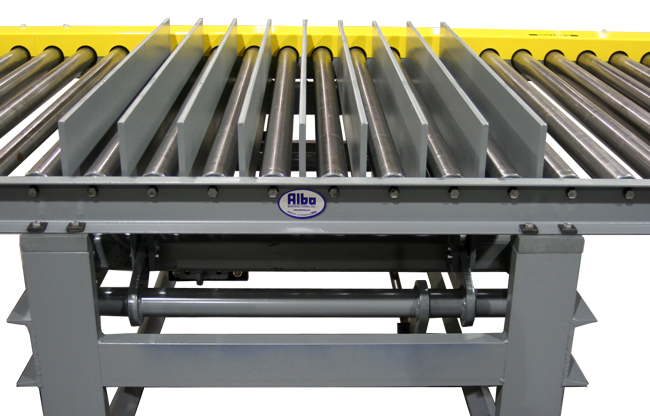

At the core of the Blade Lift is the blade weldment—a robust structural steel assembly equipped with vertical steel plates. These plates extend through the conveyor rollers, lifting the pallet approximately three inches above the roller surface. This elevation allows the bottom edge of the pallet to clear the scalloped roller guard, making it easier to apply wrapping or other packaging treatments to the entire load.
Cylinder Options |
|
The lifting force comes from a pneumatic cylinder mounted to the base of the Blade Lift. Its rod end is connected to a clevis on the pivot arms, enabling swift, reliable vertical motion. Capable of lifting up to 3,000 pounds, the cylinder delivers power and speed for demanding environments. For freezer applications or facilities without access to clean, dry air, a hydraulic version with a remote power unit is also available.
Heavy-Duty Pivot Arms |
|

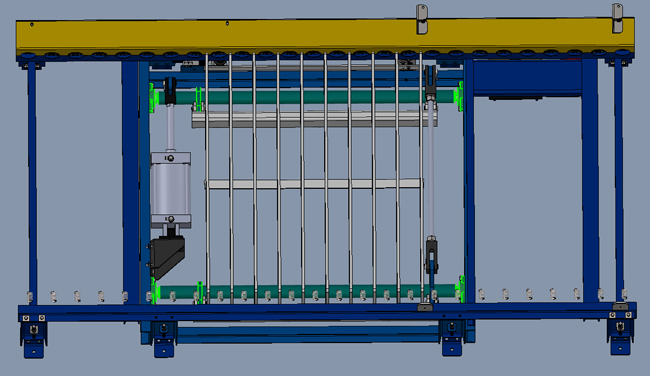

The pivot arms are engineered to convert the cylinder’s horizontal movement into a smooth vertical lift. Built as rugged steel weldments, these arms shoulder a significant portion of the load during actuation. Attached between the cylinder and tie-rod, the arms help guide the blade weldment in a stable, even motion—ensuring reliable operation with each cycle.
Engineered for Efficiency |
|
Alba’s Blade Lift Unit is built to integrate seamlessly into new or existing conveyor systems. Whether you need to stretch wrap, band, or stack loads, this unit offers a safe and effective means of repositioning pallets without interrupting your workflow. It's just one more way Alba helps you handle heavy loads with confidence.
To learn more about our Blade Lift Units or other pallet handling innovations, contact your Regional Sales Manager or call us directly at 866.252.2634. Visit www.albamfg.com to explore more rock-solid solutions from Alba Manufacturing. |
